US 12,192,948 B2
Method and apparatus of positioning for accommodating wireless-environment change
Kap Seok Chang, Daejeon (KR); Seung Chan Bang, Daejeon (KR); Young Jo Ko, Daejeon (KR); and Il Gyu Kim, Daejeon (KR)
Assigned to ELECTRONICS AND TELECOMMUNICATIONS RESEARCH INSTITUTE, Daejeon (KR)
Filed by ELECTRONICS AND TELECOMMUNICATIONS RESEARCH INSTITUTE, Daejeon (KR)
Filed on Nov. 12, 2021, as Appl. No. 17/524,824.
Claims priority of application No. 10-2021-0074404 (KR), filed on Jun. 8, 2021; and application No. 10-2021-0152055 (KR), filed on Nov. 8, 2021.
Prior Publication US 2022/0394653 A1, Dec. 8, 2022
Int. Cl. H04W 64/00 (2009.01)
CPC H04W 64/00 (2013.01) 17 Claims

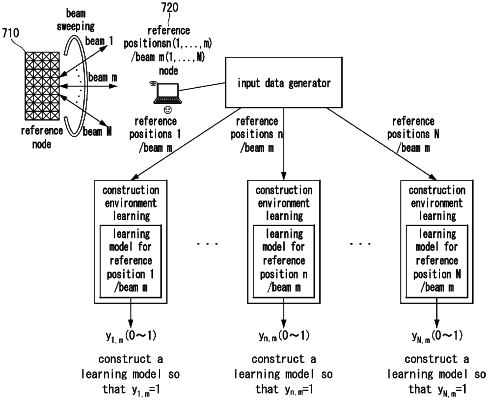

OG exemplary drawing

1. A beam fingerprint-based positioning method, performed by a communication node located in a target space, the beam fingerprint-based positioning method comprising:
performing measurements on positioning signals transmitted from at least one reference node through a plurality of directional beams in a beam sweeping scheme;
transmitting a result of the measurements to a central node; and
receiving information on a position of the communication node from the central node,
wherein the central node selects at least one beam least affected by an environmental change among the plurality of directional beams by inputting the received result of the measurements to learning models each of which is generated for each of the plurality of directional beams at each of a plurality of reference positions existing in the target space, and determines an estimated position of the communication node based on learning models for reference positions for the selected at least one beam and the received result of the measurements.
