US 12,192,036 B2
60 GHz numerology for wireless local area networks (WLANs)
Lin Yang, San Diego, CA (US); Bin Tian, San Diego, CA (US); Youhan Kim, Saratoga, CA (US); and Jialing Li Chen, San Diego, CA (US)
Assigned to QUALCOMM Incorporated, San Diego, CA (US)
Filed by QUALCOMM Incorporated, San Diego, CA (US)
Filed on Oct. 4, 2023, as Appl. No. 18/480,666.
Application 18/480,666 is a continuation of application No. 17/727,634, filed on Apr. 22, 2022, granted, now 11,817,981.
Prior Publication US 2024/0031209 A1, Jan. 25, 2024
Int. Cl. H04L 27/26 (2006.01); H04W 84/12 (2009.01)
CPC H04L 27/26025 (2021.01) [H04L 27/2607 (2013.01); H04L 27/2628 (2013.01); H04W 84/12 (2013.01)] 30 Claims

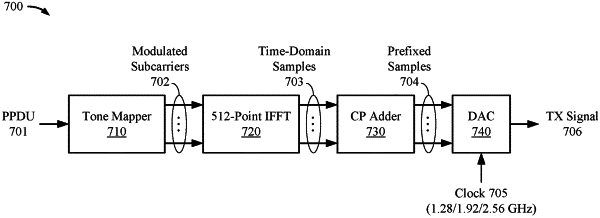

OG exemplary drawing

1. A wireless communication device, comprising:
one or more memories that store processor-executable code; and
one or more processors coupled with the one or more memories and configured to, in association with executing the code, cause the wireless communication device to:
map, to a plurality of subcarriers, a physical layer (PHY) convergence protocol (PLCP) protocol data unit (PPDU) conforming to a PPDU format associated with wireless communication on a carrier frequency below 7 gigahertz (GHz), the plurality of subcarriers spanning a bandwidth associated with the PPDU format;
transform the plurality of subcarriers into a time-varying signal at a sampling rate higher than the bandwidth, the sampling rate being associated with a subcarrier spacing (SCS) greater than 1.2 megahertz (MHz); and
transmit the time-varying signal, over a wireless channel, on a carrier frequency above 7 GHz.
