US 12,192,006 B2
Wireless device control channel monitoring
Alireza Babaei, Fairfax, VA (US); Esmael Hejazi Dinan, McLean, VA (US); Hyoungsuk Jeon, Centreville, VA (US); Kyungmin Park, Vienna, VA (US); and Hua Zhou, Vienna, VA (US)
Assigned to BEIJING XIAOMI MOBILE SOFTWARE CO., LTD., Beijing (CN)
Filed by BEIJING XIAOMI MOBILE SOFTWARE CO., LTD., Beijing (CN)
Filed on Mar. 29, 2023, as Appl. No. 18/127,899.
Application 18/127,899 is a continuation of application No. 17/578,015, filed on Jan. 18, 2022, granted, now 11,671,204.
Application 17/578,015 is a continuation of application No. 16/101,309, filed on Aug. 10, 2018, granted, now 11,233,606, issued on Jan. 5, 2022.
Claims priority of provisional application 62/543,849, filed on Aug. 10, 2017.
Prior Publication US 2023/0246746 A1, Aug. 3, 2023
This patent is subject to a terminal disclaimer.
Int. Cl. H04L 1/1812 (2023.01); H04L 1/1822 (2023.01); H04L 1/1829 (2023.01); H04L 1/1867 (2023.01); H04L 43/0864 (2022.01); H04W 76/28 (2018.01); H04W 52/02 (2009.01); H04W 72/23 (2023.01); H04W 74/00 (2009.01)
CPC H04L 1/1812 (2013.01) [H04L 1/1822 (2013.01); H04L 1/1848 (2013.01); H04L 1/1851 (2013.01); H04L 1/1854 (2013.01); H04L 1/188 (2013.01); H04L 1/1883 (2013.01); H04L 1/1887 (2013.01); H04L 43/0864 (2013.01); H04W 76/28 (2018.02); H04W 52/0229 (2013.01); H04W 72/23 (2023.01); H04W 74/006 (2013.01)] 20 Claims

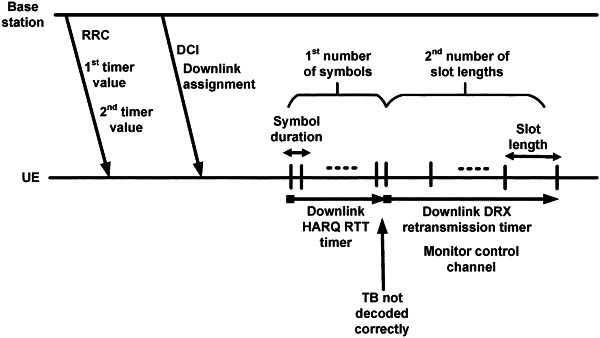

OG exemplary drawing

1. A method comprising:
transmitting, by a base station to a wireless device, one or more radio resource control messages; and
transmitting, by the base station, downlink control information indicating downlink transmission of a transport block via a downlink data channel;
wherein the one or more radio resource control messages comprise a downlink hybrid automatic repeat request (HARQ) round-trip-time (RTT) timer value expressed in units of symbols indicating the wireless device to start a downlink HARQ RTT timer with the downlink HARQ RTT timer value in response to receiving the downlink control information; and
a downlink discontinuous reception (DRX) retransmission timer value expressed in units of slot lengths indicating the wireless device to start a downlink DRX retransmission timer with the downlink DRX retransmission timer value in response to the downlink HARQ RTT timer expiring and the transport block not being successfully decoded, wherein the downlink DRX retransmission timer is for the wireless device to monitor a downlink control channel while the downlink DRX retransmission timer is running;
wherein the downlink HARQ RTT timer value indicates a first number of symbols;
wherein the downlink DRX retransmission timer value indicates a second number of slot lengths.
