US 12,191,999 B2
Method and apparatus for receiving PPDU on which BCC interleaving has been performed in multi-RU in wireless LAN system
Eunsung Park, Seoul (KR); Jinyoung Chun, Seoul (KR); Jinsoo Choi, Seoul (KR); and Dongguk Lim, Seoul (KR)
Assigned to LG ELECTRONICS INC., Seoul (KR)
Filed by LG ELECTRONICS INC., Seoul (KR)
Filed on Aug. 10, 2023, as Appl. No. 18/232,725.
Application 18/232,725 is a continuation of application No. 18/132,007, filed on Apr. 7, 2023, granted, now 11,984,981.
Application 18/132,007 is a continuation of application No. 17/758,956, granted, now 11,902,022, previously published as PCT/KR2021/000803, filed on Jan. 20, 2021.
Claims priority of application No. 10-2020-0010077 (KR), filed on Jan. 28, 2020; and application No. 10-2020-0012139 (KR), filed on Jan. 31, 2020.
Prior Publication US 2023/0388051 A1, Nov. 30, 2023
Int. Cl. H04L 1/00 (2006.01); H04L 27/18 (2006.01); H04W 84/12 (2009.01)
CPC H04L 1/0071 (2013.01) [H04L 1/0059 (2013.01); H04L 27/18 (2013.01); H04W 84/12 (2013.01)] 19 Claims

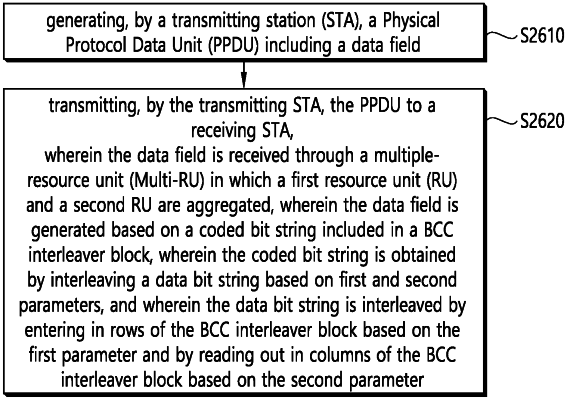

OG exemplary drawing

1. A method in a wireless Local Area Network (LAN) system, the method comprising:
generating, by a transmitting station (STA), a Physical Protocol Data Unit (PPDU) including a data field; and
transmitting, by the transmitting STA, the PPDU to a receiving STA,
wherein the data field is transmitted with binary convolutional code (BCC) encoding on a multiple-resource unit (MRU),
wherein BCC encoded bits of the data field are processed based on interleaver parameters including NCOL, NROW and NROT,
wherein based on Dual Carrier Modulation (DCM) not used and a size of the MRU being 52+26 tone MRU, the NCOL is 18, the NROW is 4 X NBPSCS, and the NROT is 18,
wherein based on the DCM not used and the size of the MRU being 106+26 tone MRU, the NCOL is 21 and the NROW is 6 X NBPSCS,
wherein the NROW is a size of rows of the BCC interleaver block, and
wherein the NCOL is a size of columns of the BCC interleaver block.
