US 12,191,830 B2
Switched-capacitor amplifier
Shogo Kawahara, Kariya (JP)
Assigned to DENSO CORPORATION, Kariya (JP)
Filed by DENSO CORPORATION, Kariya (JP)
Filed on Aug. 27, 2021, as Appl. No. 17/458,892.
Application 17/458,892 is a continuation of application No. PCT/JP2020/006059, filed on Feb. 17, 2020.
Claims priority of application No. 2019-047112 (JP), filed on Mar. 14, 2019.
Prior Publication US 2021/0391838 A1, Dec. 16, 2021
Int. Cl. H03F 3/45 (2006.01)
CPC H03F 3/45475 (2013.01) [H03F 2203/45116 (2013.01)] 4 Claims

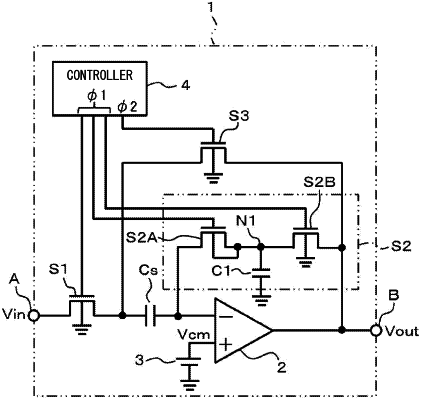

OG exemplary drawing

1. A switched-capacitor amplifier comprising:
a sampling capacitor;
a first switch connected between a signal input terminal and one terminal of the sampling capacitor;
a differential amplifier including an inverting input terminal connected to another terminal of the sampling capacitor and an output terminal connected to a signal output terminal;
a reference power supply configured to apply a predetermined voltage to a non-inverting input terminal of the differential amplifier;
a second switch connected between the inverting input terminal of the differential amplifier and the signal output terminal;
a third switch connected between a common connection point of the first switch and the sampling capacitor and the signal output terminal; and
a controller configured to execute on and off control of the first to third switches, wherein
the second switch includes a series circuit of first and second metal oxide semiconductor (MOS) transistors and a potential holding capacitor connected between a node that is a common connection point of the first and second MOS transistors and a ground, and a back gate of the first MOS transistor is connected only to the node together with a source of the first MOS transistor.
