US 12,191,705 B2
Energy control system
Sandeep Narla, Newark, CA (US); Brian Kuhn, Austin, TX (US); Kevin C. Fischer, Orinda, CA (US); Udo Uebel, San Francisco, CA (US); and Marc A. Robinson, Cedar Park, TX (US)
Assigned to UNIRAC, Inc., Albuquerque, NM (US)
Filed by Unirac, Inc., Albuquerque, NM (US)
Filed on Dec. 22, 2023, as Appl. No. 18/394,873.
Application 18/394,873 is a continuation of application No. 17/520,277, filed on Nov. 5, 2021, granted, now 11,855,482.
Application 17/520,277 is a continuation of application No. 16/811,832, filed on Mar. 6, 2020, granted, now 11,201,496, issued on Nov. 7, 2023.
Claims priority of provisional application 62/903,526, filed on Sep. 20, 2019.
Claims priority of provisional application 62/884,808, filed on Aug. 9, 2019.
Claims priority of provisional application 62/836,494, filed on Apr. 19, 2019.
Prior Publication US 2024/0178698 A1, May 30, 2024
Int. Cl. H02J 9/06 (2006.01); B60L 8/00 (2006.01); B60L 50/60 (2019.01); B60L 53/51 (2019.01); B60L 53/60 (2019.01); B60L 58/12 (2019.01); B60L 58/18 (2019.01); H02J 3/00 (2006.01); H02J 3/38 (2006.01); H02J 7/00 (2006.01)
CPC H02J 9/06 (2013.01) [B60L 8/003 (2013.01); B60L 50/60 (2019.02); B60L 50/66 (2019.02); B60L 53/51 (2019.02); B60L 53/60 (2019.02); B60L 58/12 (2019.02); H02J 3/004 (2020.01); H02J 3/381 (2013.01); H02J 7/0013 (2013.01); H02J 7/0048 (2020.01); H02J 7/007 (2013.01); B60L 58/18 (2019.02); H02J 2300/24 (2020.01)] 6 Claims

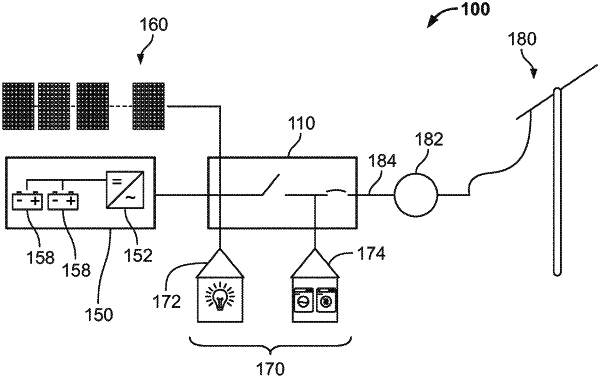

OG exemplary drawing

1. A method for controlling an energy control system having a grid interconnection electrically connected to a utility grid, a backup load interconnection configured to be selectively electrically connected to a plurality of backup loads, and a backup power interconnection electrically connected to a backup power source, comprising:
detecting a power outage at the grid interconnection;
connecting a first set of the plurality of backup loads to the backup load interconnection, wherein the backup load interconnection is electrically coupled to the backup power interconnection such that power is supplied from the backup power source to the first set of backup loads;
disconnecting a second set of the plurality of backup loads from the backup load connection such that power is interrupted between the backup power source and the second set of backup loads;
receiving a request from a user device to connect at least one load of the second set of the plurality of backup loads to the backup interconnection; and
determining whether to connect the at least one load of the second set of the plurality of backup loads to the backup interconnection according to one or more programmed rules.
