US 12,191,078 B2
Ternary composite material, supercapacitor, and related methods
Jong Hyun Choi, West Lafayette, IN (US); Duncan Neal Houpt, San Francisco, CA (US); and Jaehoon Ji, West Lafayette, IN (US)
Assigned to Purdue Research Foundation, West Lafayette, IN (US)
Filed by Purdue Research Foundation, West Lafayette, IN (US)
Filed on Dec. 9, 2022, as Appl. No. 18/063,998.
Claims priority of provisional application 63/288,808, filed on Dec. 13, 2021.
Prior Publication US 2023/0187146 A1, Jun. 15, 2023
Int. Cl. H01G 11/36 (2013.01); C01B 32/16 (2017.01); C01B 32/174 (2017.01); H01G 11/32 (2013.01); H01G 11/86 (2013.01)
CPC H01G 11/36 (2013.01) [C01B 32/16 (2017.08); C01B 32/174 (2017.08); H01G 11/32 (2013.01); H01G 11/86 (2013.01)] 20 Claims

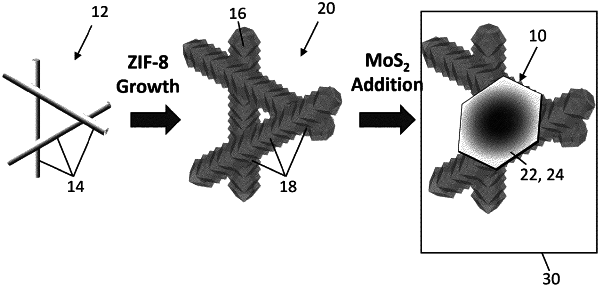

OG exemplary drawing

1. A ternary composite material comprising:
a scaffold formed of carbon nanotubes (CNT);
a first layer of zeolitic imidazolate 8 (ZIF-8) crystals formed on the scaffold of the CNT; and
a second layer of molybdenum disulfide (MoS2) flakes formed on the first layer of the ZIF-8 crystals,
wherein the ZIF-8 crystals are thiolated, and
wherein sulfur vacancies of the MoS2 flakes are bound to thiol group binding sites of the ZIF-8 crystals.
