US 12,191,072 B2
Coil component manufacturing apparatus and coil component manufacturing method
Yasuhiro Itani, Nagaokakyo (JP); Ryo Narahara, Nagaokakyo (JP); and Seiji Karimori, Nagaokakyo (JP)
Assigned to Murata Manufacturing Co., Ltd., Kyoto-fu (JP)
Filed by Murata Manufacturing Co., Ltd., Kyoto-fu (JP)
Filed on May 16, 2022, as Appl. No. 17/745,675.
Claims priority of application No. 2021-083359 (JP), filed on May 17, 2021.
Prior Publication US 2022/0367113 A1, Nov. 17, 2022
Int. Cl. H01F 41/00 (2006.01); H01F 41/07 (2016.01); H01F 41/082 (2016.01)
CPC H01F 41/082 (2016.01) [H01F 41/07 (2016.01)] 20 Claims

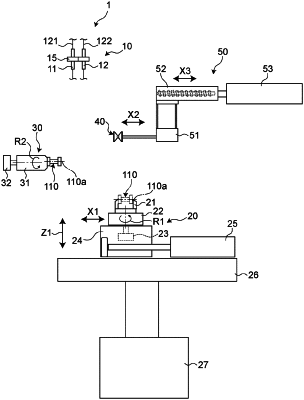

OG exemplary drawing

1. A coil component manufacturing apparatus comprising:
a nozzle configured to receive a plurality of wires;
a wire twisting mechanism configured to hold a core, rotate the core-relative to the nozzle in a direction of twisting the plurality of wires, and form a twisted portion in which the plurality of wires are twisted between the nozzle and the core;
a wire winding mechanism configured to hold the core, rotate the core relative to the nozzle in a direction of winding the twisted portion around the core, and wind the twisted portion around the core; and
a guide positioned closer to the core than the nozzle, the guide being configured to guide the twisted portion to a predetermined position of the core when the twisted portion is wound around the core.
