US 12,190,715 B2
Device for facilitating correcting of a posture of a user
John Pellegrini, Placerville, CA (US)
Filed by John Pellegrini, Placerville, CA (US)
Filed on Sep. 11, 2022, as Appl. No. 17/942,161.
Application 17/942,161 is a continuation in part of application No. 16/920,270, filed on Jul. 2, 2020, granted, now 11,475,753.
Prior Publication US 2024/0087432 A1, Mar. 14, 2024
Int. Cl. G06F 3/0484 (2022.01); G08B 5/36 (2006.01); G08B 21/04 (2006.01)
CPC G08B 5/36 (2013.01) [G08B 21/0461 (2013.01)] 12 Claims

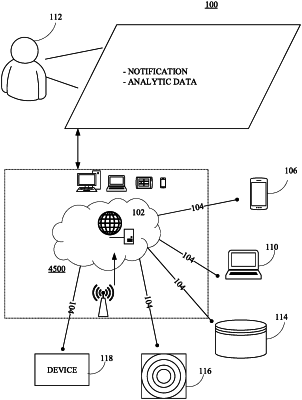

OG exemplary drawing

1. A device comprising a user interface, wherein the device is configured for facilitating correcting of a posture of a user based on an interaction between the user and the device through the user interface, wherein the interaction facilitates communication between the device and the user through the user interface, wherein the device comprises:
at least one sensor configured for generating sensor data based on a spatial attribute of the device in relation to the user, wherein the spatial attribute comprises at least one of a spatial position of the device in relation to the user and a spatial orientation of the device in relation to the user;
a processing device communicatively coupled to the at least one sensor, wherein the processing device is configured for:
comparing the sensor data based on at least one predetermined criterion of the spatial attribute; and
generating a command based on the comparing of the sensor data;
a storage device communicatively coupled with the processing device, wherein the storage device is configured for storing the at least one predetermined criterion; and
an output indication device communicatively coupled with the processing device, wherein the output indication device is configured for generating at least one indication based on the command; and
wherein the device is further configured to provide the user with warning level indicators based on neck position data, wherein the warning level indicators comprise pre-set ranges corresponding to a green zone, a yellow zone, and a red zone, and wherein the at least one predetermined criterion comprises an angle of activation, a strength of vibration, a pulse frequency of vibration, and/or a time of delay.
