US 12,190,714 B2
Devices, methods, and graphical user interfaces for providing haptic feedback
Camille Moussette, San Francisco, CA (US); Duncan R. Kerr, San Francisco, CA (US); Joshua B. Kopin, Oakland, CA (US); Jules K. Fennis, Seattle, WA (US); and Miao He, Shanghai (CN)
Assigned to APPLE INC., Cupertino, CA (US)
Filed by Apple Inc., Cupertino, CA (US)
Filed on Jun. 29, 2023, as Appl. No. 18/216,546.
Application 18/216,546 is a continuation of application No. 17/947,023, filed on Sep. 16, 2022, granted, now 11,735,014.
Application 17/947,023 is a continuation of application No. 17/318,995, filed on May 12, 2021, granted, now 11,468,749, issued on Oct. 11, 2022.
Application 17/318,995 is a continuation of application No. 16/885,166, filed on May 27, 2020, granted, now 11,037,413, issued on Jun. 15, 2021.
Application 16/885,166 is a continuation of application No. 16/355,621, filed on Mar. 15, 2019, granted, now 10,692,333, issued on Jun. 23, 2020.
Application 16/355,621 is a continuation of application No. 15/905,671, filed on Feb. 26, 2018, granted, now 10,276,000, issued on Apr. 30, 2019.
Application 15/905,671 is a continuation of application No. 15/619,359, filed on Jun. 9, 2017, granted, now 9,984,539, issued on May 29, 2018.
Claims priority of provisional application 62/507,039, filed on May 16, 2017.
Claims priority of provisional application 62/349,115, filed on Jun. 12, 2016.
Prior Publication US 2023/0343189 A1, Oct. 26, 2023
This patent is subject to a terminal disclaimer.
Int. Cl. G08B 21/12 (2006.01); G06F 3/01 (2006.01); G06F 3/04847 (2022.01); G06F 3/0486 (2013.01); G06F 3/04883 (2022.01); G06F 3/16 (2006.01); G08B 3/10 (2006.01); G08B 6/00 (2006.01); H04M 1/724 (2021.01); H04M 1/72454 (2021.01); H04M 19/04 (2006.01); G06F 3/041 (2006.01)
CPC G08B 3/10 (2013.01) [G06F 3/016 (2013.01); G06F 3/04847 (2013.01); G06F 3/0486 (2013.01); G06F 3/04883 (2013.01); G06F 3/16 (2013.01); G06F 3/167 (2013.01); G08B 6/00 (2013.01); H04M 1/724 (2021.01); H04M 1/72454 (2021.01); H04M 19/047 (2013.01); G06F 3/041 (2013.01); G06F 2203/014 (2013.01)] 36 Claims

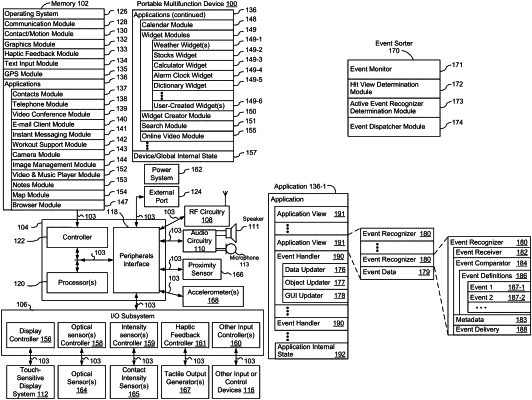

OG exemplary drawing

1. A method, comprising:
at an electronic device with a display, a touch-sensitive surface, and one or more tactile output generators:
displaying, on the display, a user interface that includes:
a first adjustable control, and
a second adjustable control;
detecting movement of a first contact across the touch-sensitive surface in a drag gesture;
in accordance with a determination that the drag gesture is performed while a focus selector is at a location that corresponds to the first adjustable control:
adjusting the first adjustable control in accordance with the movement of the first contact in the drag gesture; and
outputting, with the one or more tactile output generators, a first plurality of tactile outputs, wherein:
a respective tactile output, in the first plurality of tactile outputs, is triggered based on progress adjusting the first adjustable control; and
the first plurality of tactile outputs have a first distribution of tactile outputs as the first adjustable control is adjusted; and
in accordance with a determination that the drag gesture is performed while the focus selector is at a location that corresponds to the second adjustable control:
adjusting the second adjustable control in accordance with the movement of the first contact in the drag gesture; and
outputting, with the one or more tactile output generators, a second plurality of tactile outputs, wherein:
a respective tactile output, in the second plurality of tactile outputs, is triggered based on progress adjusting the second adjustable control; and
the second plurality of tactile outputs has a second distribution of tactile outputs that is different from the first distribution of tactile outputs as the second adjustable control is adjusted.
