US 12,190,555 B2
Information processing device, range determination method, and program
Kazuya Urabe, Kyoto (JP); Kiyoaki Tanaka, Kyoto (JP); and Kazunori Kitazumi, Kyoto (JP)
Assigned to OMRON CORPORATION, Kyoto (JP)
Appl. No. 17/778,324
Filed by OMRON Corporation, Kyoto (JP)
PCT Filed Nov. 18, 2020, PCT No. PCT/JP2020/043026
§ 371(c)(1), (2) Date May 19, 2022,
PCT Pub. No. WO2021/117444, PCT Pub. Date Jun. 17, 2021.
Claims priority of application No. 2019-223712 (JP), filed on Dec. 11, 2019.
Prior Publication US 2023/0033125 A1, Feb. 2, 2023
Int. Cl. G06V 10/25 (2022.01); G06T 7/13 (2017.01); G06T 11/20 (2006.01); G06T 11/60 (2006.01); G06V 10/75 (2022.01)
CPC G06V 10/25 (2022.01) [G06T 7/13 (2017.01); G06T 11/203 (2013.01); G06T 11/60 (2013.01); G06V 10/751 (2022.01); G06T 2207/10028 (2013.01); G06T 2207/20104 (2013.01)] 13 Claims

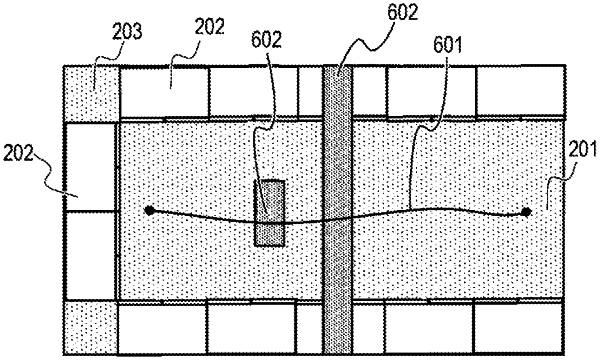

OG exemplary drawing

2. An information processing device that determines a monitoring target range of a predetermined place, the information processing device comprising:
(i) a memory configured to store computer-executable instructions and a processor configured to execute the computer-executable instructions stored in the memory, (ii) an integrated circuit, or both (i) and (ii) that cause the information processing device to:
acquire information on a line drawn by a user with respect to image data in which the predetermined place is imaged; and
determine a range indicated by an area on the line as the monitoring target range, a thickness of the line being increased, wherein
(i) the memory configured to store computer-executable instructions and the processor configured to execute the computer-executable instructions stored in the memory, (ii) the integrated circuit, or both (i) and (ii) cause the information processing device to:
calculate thicknesses of the line at locations of points of the line in a case where the thicknesses of the line at the locations of the points of the line are increased until the line reaches a boundary location included in the image data; and
determine a range indicated by an area on the line as the monitoring target range, a thickness of the line being increased by a length of a representative value of thicknesses calculated at locations of a plurality of points among the points of the line.
