US 12,190,507 B2
Image processing device and storage medium
Tomoaki Takemura, Osaka (JP); Hisashi Wada, Tokyo (JP); and Hidekazu Takahashi, Toyonaka (JP)
Assigned to KONICA MINOLTA, INC., Tokyo (JP)
Filed by Konica Minolta, Inc., Tokyo (JP)
Filed on Feb. 3, 2022, as Appl. No. 17/591,680.
Claims priority of application No. 2021-017378 (JP), filed on Feb. 5, 2021.
Prior Publication US 2022/0254013 A1, Aug. 11, 2022
Int. Cl. G06T 7/00 (2017.01); A61B 6/50 (2024.01)
CPC G06T 7/0012 (2013.01) [A61B 6/502 (2013.01); G06T 2207/30068 (2013.01)] 4 Claims

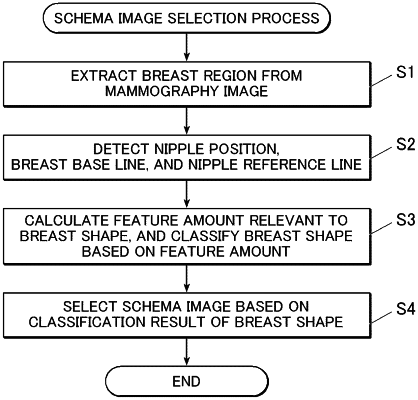

OG exemplary drawing

1. An image processing device, comprising:
a hardware processor,
wherein the hardware processor calculates a feature amount relevant to a breast shape from a mammography image, and
the hardware processor selects a schema image corresponding to the breast shape of the mammography image from a plurality of types of predetermined schema images based on the feature amount relevant to the breast shape calculated by the hardware processor:
wherein the feature amount relevant to the breast shape is a feature amount relevant to a volume of a breast included in the mammography image or a feature amount relevant to a position of a nipple;
wherein the feature amount relevant to the volume of the breast is a ratio of a length of a perpendicular line drawn from the nipple to a breast base line in the mammography image to a length of the breast base line.
