US 12,190,486 B2
Virtual, augmented, and mixed reality systems and methods
Jose Felix Rodriguez, Hialeah, FL (US); and Ricardo Martinez Perez, Plantation, FL (US)
Assigned to Magic Leap, Inc., Plantation, FL (US)
Filed by MAGIC LEAP, INC., Plantation, FL (US)
Filed on Oct. 16, 2023, as Appl. No. 18/487,794.
Application 18/487,794 is a continuation of application No. 17/476,392, filed on Sep. 15, 2021, granted, now 11,823,360.
Application 17/476,392 is a continuation of application No. 16/926,484, filed on Jul. 10, 2020, granted, now 11,151,699, issued on Oct. 19, 2021.
Application 16/926,484 is a continuation of application No. 16/697,711, filed on Nov. 27, 2019, granted, now 10,748,259, issued on Aug. 18, 2020.
Application 16/697,711 is a continuation of application No. 15/683,677, filed on Aug. 22, 2017, granted, now 10,529,063, issued on Jan. 7, 2020.
Claims priority of provisional application 62/462,279, filed on Feb. 22, 2017.
Claims priority of provisional application 62/377,829, filed on Aug. 22, 2016.
Claims priority of provisional application 62/377,804, filed on Aug. 22, 2016.
Prior Publication US 2024/0046433 A1, Feb. 8, 2024
This patent is subject to a terminal disclaimer.
Int. Cl. G06T 5/80 (2024.01); G06F 1/3203 (2019.01); G06F 3/14 (2006.01); G06T 3/18 (2024.01); G06T 3/4007 (2024.01)
CPC G06T 5/80 (2024.01) [G06F 1/3203 (2013.01); G06F 3/14 (2013.01); G06T 3/18 (2024.01); G06T 3/4007 (2013.01); G06T 2207/10024 (2013.01); G06T 2210/44 (2013.01); G09G 2330/021 (2013.01); G09G 2370/04 (2013.01)] 20 Claims

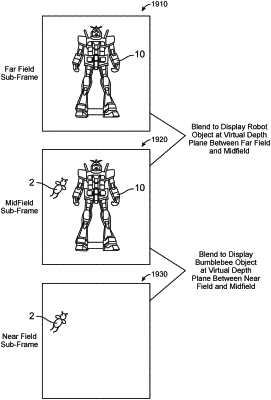

OG exemplary drawing

1. A virtual, augmented, or mixed reality display system comprising:
a display configured to display digital image data for a plurality of depth planes, the display comprising a first optical path to display image data corresponding to a first depth plane and an at least partially distinct second optical path to display image data corresponding to a second depth plane; and
a display controller configured to blend the image data corresponding to the first depth plane with the image data corresponding to the second depth plane such that when the blended image data is displayed by the display it appears to correspond to a virtual depth plane located between the first depth plane and the second depth plane.
