US 12,189,495 B2
System and techniques for backing up scalable computing objects
Sai Kiran Katuri, Santa Clara, CA (US); Prateek Pandey, Bangalore (IN); Jihang Lim, Milpitas, CA (US); and Amelia Vu, Mountain View, CA (US)
Assigned to Rubrik, Inc., Palo Alto, CA (US)
Filed by Rubrik, Inc., Palo Alto, CA (US)
Filed on Dec. 30, 2022, as Appl. No. 18/091,377.
Claims priority of application No. 202241061025 (IN), filed on Oct. 26, 2022.
Prior Publication US 2024/0143454 A1, May 2, 2024
Int. Cl. G06F 11/14 (2006.01); G06F 9/54 (2006.01)
CPC G06F 11/1469 (2013.01) [G06F 9/547 (2013.01); G06F 2201/84 (2013.01)] 20 Claims

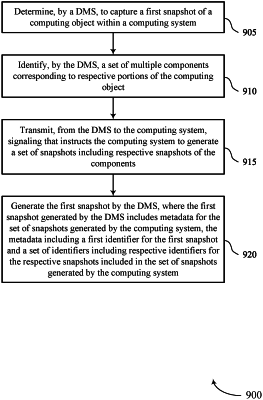

OG exemplary drawing

1. A method, comprising:
transmitting, from a data management system to a computing system, signaling that instructs the computing system to generate a set of respective snapshots at a first point in time of a plurality of components of a computing object within the computing system;
causing, by the data management system, storage of the set of respective snapshots in a first storage entity accessible to the data management system in association with a set of respective identifiers for the set of respective snapshots; and
causing, by the data management system, storage of a first snapshot corresponding to the first point in time for the computing object, wherein the first snapshot comprises metadata representative of the set of respective snapshots, the metadata comprising a first identifier for the first snapshot and the set of respective identifiers for the set of respective snapshots stored in the first storage entity.
