US 12,189,282 B2
Lens driving apparatus capable of facilitating an operation of bonding a coil to an elastic member, and camera module and optical device comprising same
Sang Ok Park, Seoul (KR); Kyung Hwan Kim, Seoul (KR); Tae Bong Park, Seoul (KR); and Jung Cheol Kim, Seoul (KR)
Assigned to LG INNOTEK CO., LTD., Seoul (KR)
Appl. No. 17/606,678
Filed by LG INNOTEK CO., LTD., Seoul (KR)
PCT Filed May 11, 2020, PCT No. PCT/KR2020/006153
§ 371(c)(1), (2) Date Oct. 26, 2021,
PCT Pub. No. WO2020/226465, PCT Pub. Date Nov. 12, 2020.
Claims priority of application No. 10-2019-0054306 (KR), filed on May 9, 2019; and application No. 10-2019-0119200 (KR), filed on Sep. 26, 2019.
Prior Publication US 2022/0206364 A1, Jun. 30, 2022
Int. Cl. G02B 27/64 (2006.01); G03B 5/00 (2021.01); G03B 17/12 (2021.01); H04N 23/54 (2023.01); H04N 23/55 (2023.01)
CPC G03B 5/00 (2013.01) [G03B 17/12 (2013.01); H04N 23/54 (2023.01); H04N 23/55 (2023.01); G03B 2205/0069 (2013.01)] 20 Claims

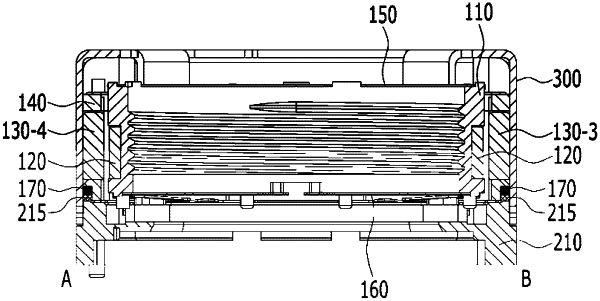

OG exemplary drawing

1. A lens moving apparatus comprising:
a housing;
a bobbin disposed inside the housing;
a coil coupled to the bobbin;
a magnet disposed on the housing so as to face the coil;
a base disposed so as to be spaced apart from the bobbin;
a lower elastic member coupled to the bobbin and comprising a first elastic member, a second elastic member, a third elastic member, and a fourth elastic member, wherein the first to fourth elastic members are disposed on the base; and
a sensing coil disposed on the housing so as to generate an induction voltage resulting from interaction with the coil,
wherein a corner of the base and a corner of the housing form a coupling region in which the two corners are coupled to each other,
wherein the sensing coil comprises a portion disposed outside the coupling region, and
wherein the sensing coil comprises a portion that is in contact with an outer surface of the coupling region and overlaps the coupling region in a direction perpendicular to an optical axis.
