US 12,189,277 B2
Camera mount
Ian Griggs, San Francisco, CA (US); and David Thomas Platner, San Francisco, CA (US)
Assigned to GoPro, Inc., San Mateo, CA (US)
Filed by GoPro, Inc., San Mateo, CA (US)
Filed on Dec. 21, 2022, as Appl. No. 18/085,739.
Claims priority of provisional application 63/303,618, filed on Jan. 27, 2022.
Prior Publication US 2023/0236479 A1, Jul. 27, 2023
Int. Cl. G03B 17/56 (2021.01); F16M 11/04 (2006.01); F16M 11/10 (2006.01); F16M 11/12 (2006.01); F16M 11/18 (2006.01)
CPC G03B 17/561 (2013.01) [F16M 11/04 (2013.01); F16M 11/10 (2013.01); F16M 11/12 (2013.01); F16M 11/18 (2013.01); G03B 17/56 (2013.01)] 20 Claims

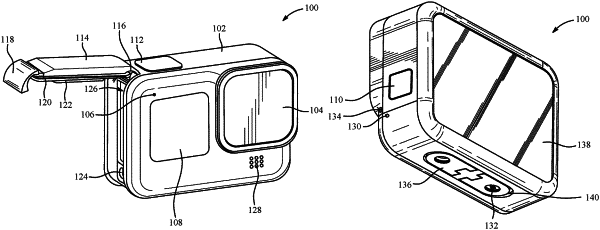

OG exemplary drawing

1. A camera mount, comprising:
a body;
one or more magnets located within the body and configured to connect to a magnetic portion or a ferromagnetic portion of a camera; and
two pins that extend axially outward from the body above the one or more magnets and are configured to extend into recesses within the camera, wherein the one or more magnets are located between the two pins.
