US 12,189,258 B2
Electronic devices having electrically adjustable optical shutters
Michael W. Firka, Sunnyvale, CA (US); Ashley E. Fletcher, San Francisco, CA (US); Benjamin J. Pope, Woodside, CA (US); Lee E. Hooton, Massapequa, NY (US); Scott A. Myers, Saratoga, CA (US); Benjamin Shane Bustle, Cupertino, CA (US); Garam Young, Sunnyvale, CA (US); and Blake M. Coughenour, Sunnyvale, CA (US)
Assigned to Apple Inc., Cupertino, CA (US)
Filed by Apple Inc., Cupertino, CA (US)
Filed on Jun. 8, 2023, as Appl. No. 18/331,304.
Application 18/331,304 is a continuation of application No. 17/894,022, filed on Aug. 23, 2022, granted, now 11,740,527.
Application 17/894,022 is a continuation of application No. 17/119,878, filed on Dec. 11, 2020, granted, now 11,460,746, issued on Oct. 4, 2022.
Application 17/119,878 is a continuation of application No. 16/808,911, filed on Mar. 4, 2020, granted, now 10,942,412, issued on Mar. 9, 2021.
Application 16/808,911 is a continuation of application No. 15/887,661, filed on Feb. 2, 2018, granted, now 10,690,986, issued on Jun. 23, 2020.
Claims priority of provisional application 62/558,110, filed on Sep. 13, 2017.
Prior Publication US 2023/0314891 A1, Oct. 5, 2023
Int. Cl. G02F 1/137 (2006.01); G02B 26/00 (2006.01); G02F 1/133 (2006.01); G09G 3/34 (2006.01); G09G 3/36 (2006.01)
CPC G02F 1/13781 (2013.01) [G02B 26/005 (2013.01); G02F 1/13306 (2013.01); G09G 3/348 (2013.01); G09G 3/36 (2013.01); G09G 2300/023 (2013.01); G09G 2360/144 (2013.01)] 17 Claims

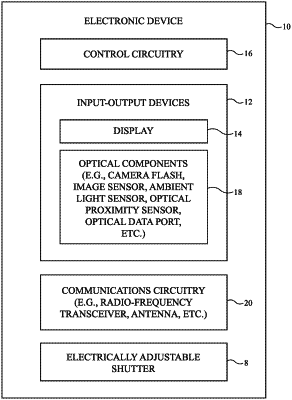

OG exemplary drawing

1. A head-worn device, comprising:
a housing;
an optical component configured to operate through a portion of the housing; and
an electrically adjustable shutter that is separate from and overlaps the optical component, wherein the electrically adjustable shutter is configured to be adjusted between a transparent state and a non-transparent state, the electrically adjustable shutter is configured to exhibit haze in the non-transparent state, and the optical component is configured to operate through the electrically adjustable shutter.
