US 12,189,030 B2
Systems and methods for laser generation based on polarized beams
Yonghong Guo, Mountain View, CA (US); Youmin Wang, Mountain View, CA (US); Chao Wang, Mountain View, CA (US); Yue Lu, Mountain View, CA (US); and Lingkai Kong, Mountain View, CA (US)
Assigned to BEIJING VOYAGER TECHNOLOGY CO., LTD., Beijing (CN)
Filed by BEIJING VOYAGER TECHNOLOGY CO., LTD., Beijing (CN)
Filed on Jan. 19, 2021, as Appl. No. 17/152,773.
Application 17/152,773 is a continuation of application No. PCT/US2019/056614, filed on Oct. 16, 2019.
Prior Publication US 2021/0165095 A1, Jun. 3, 2021
Int. Cl. G01S 7/00 (2006.01); G01S 7/481 (2006.01); G01S 7/483 (2006.01); G01S 17/10 (2020.01); G01S 17/931 (2020.01); H01S 5/00 (2006.01); H01S 5/068 (2006.01); H01S 5/183 (2006.01)
CPC G01S 17/10 (2013.01) [G01S 7/4817 (2013.01); G01S 7/483 (2013.01); G01S 17/931 (2020.01); H01S 5/0028 (2013.01); H01S 5/06821 (2013.01); H01S 5/183 (2013.01)] 18 Claims

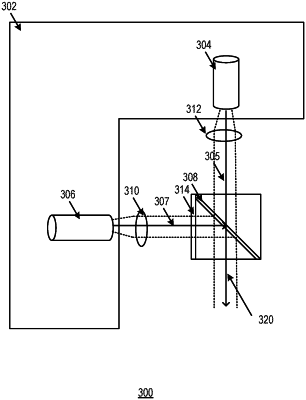

OG exemplary drawing

1. A laser beam generation system, comprising:
a first laser chip configured to generate a first polarized laser beam;
a second laser chip configured to generate a second polarized laser beam;
a polarizer configured to combine the first polarized laser beam and the second polarized laser beam to generate a third laser beam; and
a printed circuit board (PCB),
wherein the PCB is formed in an L-shape with a first portion extending in a first direction and a second portion extending in a second direction perpendicular to the first direction,
wherein the first laser chip is disposed on the first portion such that the first polarized laser beam is emitted in a direction parallel to the second direction,
wherein the second laser chip is disposed on the second portion such that the second polarized laser beam is emitted in a direction parallel to the first direction, and
wherein the first and second laser chips are configured to generate the first and second polarized laser beams, respectively, at different time slots.
