US 12,188,963 B1
Noise reduction of oscilloscope waveforms
David L. Gines, Fort Collins, CO (US)
Assigned to KEYSIGHT TECHNOLOGIES, INC., Santa Rosa, CA (US)
Filed by Keysight Technologies, Inc., Santa Rosa, CA (US)
Filed on Sep. 16, 2022, as Appl. No. 17/946,538.
Int. Cl. G01R 13/02 (2006.01)
CPC G01R 13/02 (2013.01) 20 Claims

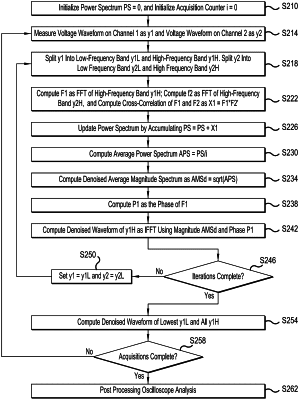

OG exemplary drawing

1. An oscilloscope, comprising:
a memory that stores instructions; and
a processor that executes the instructions, wherein, when executed by the processor, the instructions cause the oscilloscope to:
obtain a measurement of a first radio frequency signal;
split a first spectrum based on the first radio frequency signal into a first low-frequency band and a first high-frequency band;
perform a first Fourier transform to compute a first new spectrum based on the first spectrum;
compute a first waveform of the first new spectrum with noise of the oscilloscope reduced by performing a first inverse Fourier transform based on the first new spectrum; and
combine the first new spectrum with noise of the oscilloscope reduced with the first low-frequency band.
