US 12,188,487 B2
Drive unit having a cooling unit
Christian Deeg, Altdorf (DE); Harald Kuhn, Nuremberg (DE); Mischa Maidorn, Stein (DE); Stefan Mächtel, Hemhofen-Zeckern (DE); and Hans Tischmacher, Lauf (DE)
Assigned to Innomotics GmbH, Nuremberg (DE)
Appl. No. 17/600,908
Filed by Innomotics GmbH, Nuremberg (DE)
PCT Filed Mar. 5, 2020, PCT No. PCT/EP2020/055863
§ 371(c)(1), (2) Date Oct. 1, 2021,
PCT Pub. No. WO2020/200630, PCT Pub. Date Oct. 8, 2020.
Claims priority of application No. 19167304 (EP), filed on Apr. 4, 2019.
Prior Publication US 2022/0163052 A1, May 26, 2022
Int. Cl. F04D 29/58 (2006.01); F04D 19/00 (2006.01); F04D 25/06 (2006.01); H02K 5/18 (2006.01); H02K 9/06 (2006.01)
CPC F04D 29/5806 (2013.01) [F04D 19/002 (2013.01); F04D 25/06 (2013.01); F04D 29/5853 (2013.01); H02K 5/18 (2013.01); H02K 9/06 (2013.01)] 5 Claims

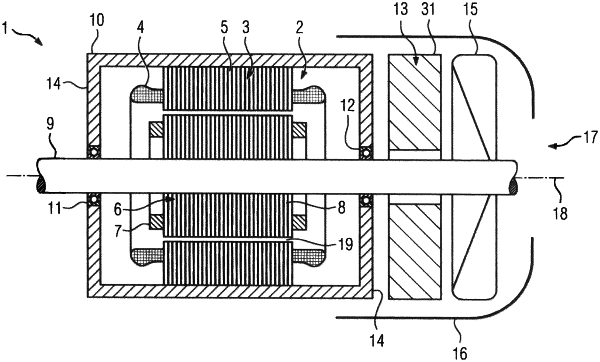

OG exemplary drawing

1. A drive, comprising:
a dynamoelectric rotational machine including a motor housing, a shaft and a bearing shield;
a closed housing arrangement;
an electronic add-on part positioned in the closed housing arrangement; and
a fan unit including a fan cowl to guide a cooling air flow generated by the fan unit over a surface of the electronic add-on part and the motor housing, said fan unit embodied as a two-zone fan which includes a hub which is connected to the shaft in a non-rotating manner, axial fan elements configured to include an articulated joint with an elastic region with sufficient restoring force in order to maintain an air flow in an axial manner irrespective of a direction of rotation and which are completely arranged in a through passage of the hub to define a first zone to generate essentially an axial air flow, and radial fan blades which radially extend from the hub and are arranged with their small side against a disk to define a second zone that adjoins the first zone in a radial manner and which generate essentially a radial air flow,
wherein the dynamoelectric rotational machine, the electronic add-on part and the fan unit are arranged axially behind one another, with the electronic add-on part being arranged axially between the dynamoelectric rotational machine and the fan unit, and
wherein free spaces are provided at least between the housing arrangement and the fan unit and/or between the housing arrangement and the bearing shield of the dynamoelectric rotational machine and/or between the housing arrangement and the shaft of the dynamoelectric rotational machine, with the free spaces being influenced during operation of the fan unit by the cooling air flow and a Venturi effect.
