| CPC E05F 15/73 (2015.01) [F24C 15/023 (2013.01); E05Y 2900/308 (2013.01)] | 20 Claims |
|
1. A cooking appliance, comprising:
a body defining an inner cavity;

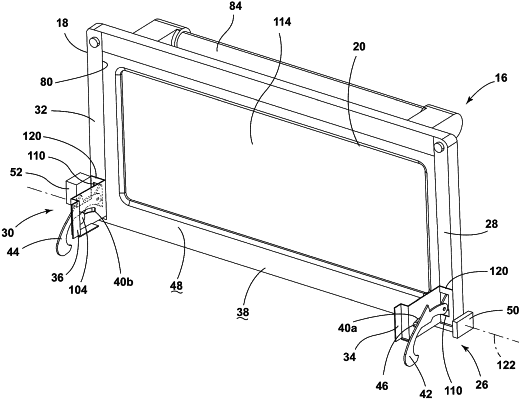

a door assembly coupled to the body, wherein the door assembly includes:
a frame; and
a door rotatably coupled to the frame, wherein the door is operable between an opened position and a closed position;
a first adjustment assembly coupled to a first side of the door assembly, the first adjustment assembly including:
a support structure coupled to an inner surface of the frame and defining a slot;
a link arm including a projection, wherein the link arm is coupled to an interior surface of the door and the projection extends through the slot; and
a motor operably coupled to the door;
a second adjustment assembly coupled to a second side of the door assembly, wherein the second adjustment assembly includes:
a support structure coupled to the inner surface of the frame and defining a slot;
a link arm including a projection, wherein the link arm is coupled to the interior surface of the door and the projection extends through the slot; and
a motor operably coupled to the door;
pins positioned on each side of the door proximate to a rotational axis, wherein the pins are configured to engage driveshafts of the motors, respectively; and
a controller in communication with the first adjustment assembly and the second adjustment assembly, wherein the controller is configured to activate at least one of the first adjustment assembly and the second adjustment assembly to guide the door between the opened position and the closed position.
|
