US 12,187,556 B2
Filling system for a container for solid particles
Bernard Poussin, Semur-en-Vallon (FR); and Guillaume Poussin, Saint Germain de la Grange (FR)
Assigned to CREALYST-GROUP, Semur-en-Vallon (FR)
Appl. No. 17/256,389
Filed by CREALYST-GROUP, Semur-en-Vallon (FR)
PCT Filed Jun. 25, 2019, PCT No. PCT/EP2019/066840
§ 371(c)(1), (2) Date Dec. 28, 2020,
PCT Pub. No. WO2020/007655, PCT Pub. Date Jan. 9, 2020.
Claims priority of application No. 18/56162 (FR), filed on Jul. 4, 2018.
Prior Publication US 2021/0155423 A1, May 27, 2021
Int. Cl. B65G 1/14 (2006.01); B65B 1/14 (2006.01); B65G 65/32 (2006.01)
CPC B65G 65/32 (2013.01) [B65B 1/14 (2013.01); B65G 2201/042 (2013.01)] 7 Claims

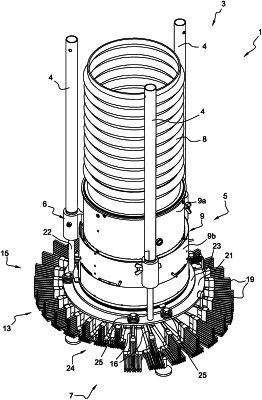

OG exemplary drawing

1. A filling system for a container for storing solid particles, comprising:
a distribution device for solid particles for receiving and selectively distributing the solid particles towards a dispensing device, and comprising a set of divider elements dividing streams of solid particles,
the dispensing device comprising at least one scattering element for homogeneously filling the container with solid particles,
wherein the set of divider elements is 360° rotatably mounted about an axis parallel to the direction of flow of the stream of solid particles in the distribution device in order to circularly allocate any defect in the flow of the solid particles in the distribution device.
