US 12,187,486 B2
Systems methods and respective kit-of-parts for elevating polymeric crates by sidewall mountable assemblies
Iftah Poran, Ramat Ha Golan (IL)
Assigned to Plasgad Plastic Products ACS Ltd, Kibbutz Gadot Northern District (IL)
Filed by PLASGAD PLASTIC PRODUCTS ACS LTD, Upper galilee (IL)
Filed on Sep. 8, 2022, as Appl. No. 17/940,784.
Prior Publication US 2024/0083624 A1, Mar. 14, 2024
Int. Cl. B65D 6/00 (2006.01)
CPC B65D 11/20 (2013.01) [B65D 11/10 (2013.01)] 6 Claims

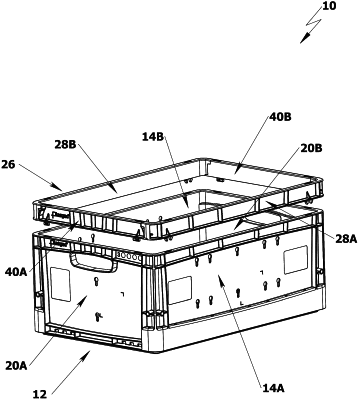

OG exemplary drawing

1. A system for elevating polymeric crates with mounted sidewall assembly, comprises:
(a) a polymeric crate comprising:
(I) a pair of longitudinal sidewalls, wherein each one of said longitudinal sidewalls comprising at least one vertically oriented aperture on a top face thereof;
(II) a pair of flanking sidewalls, wherein each one of said flanking sidewalls comprising at least one vertically oriented aperture on a top face thereof;
(b) at least one sidewall mountable elevating assembly, comprising:
(I) a pair of longitudinal members, wherein each one of said longitudinal members comprising:
(i) an essentially elongated rectangular shape;
(ii) at least one fastener on a bottom face of said elongated essentially rectangular shape;
wherein said at least one fastener is configured to be vertically insertable into said at least one vertically oriented aperture on said top face of said longitudinal sidewalls;
(iii) a pair of terminal portions, wherein each one of said terminal portions comprising at least one laterally connecting element;
(II) a pair of flanking members, wherein each one of said flanking members comprising:
(i) an essentially elongated rectangular shape;
(ii) at least one fastener on a bottom face of said elongated essentially rectangular shape;
wherein said at least one fastener is configured to be vertically insertable into said at least one vertically oriented aperture on said top face of said flanking sidewalls;
(iii) a pair of terminal portions, wherein each one of said terminal portions comprising at least one laterally connecting element;
wherein said laterally connecting elements on said terminal portions of said flanking members, in an assembled state, are interlocked with said laterally connecting elements of said terminal portions of said longitudinal members.
