US 12,187,365 B2
Track slider design for an electric rope shovel
Cristian Zaharia, Marana, AZ (US); Elizabeth J. Barnes, Tucson, AZ (US); Michael W. Haws, Wind Point, WI (US); Mircea Dumitru, Washington, IL (US); and Aruna Kinjarapu, Oro Valley, AZ (US)
Assigned to Caterpillar Global Mining LLC, Tucson, AZ (US)
Filed by Caterpillar Global Mining LLC, Tucson, AZ (US)
Filed on Apr. 29, 2021, as Appl. No. 17/244,053.
Prior Publication US 2022/0348274 A1, Nov. 3, 2022
Int. Cl. B62D 55/10 (2006.01); B62D 55/08 (2006.01); E02F 9/02 (2006.01); E02F 3/30 (2006.01)
CPC B62D 55/10 (2013.01) [B62D 55/08 (2013.01); E02F 9/02 (2013.01); E02F 3/308 (2013.01)] 20 Claims

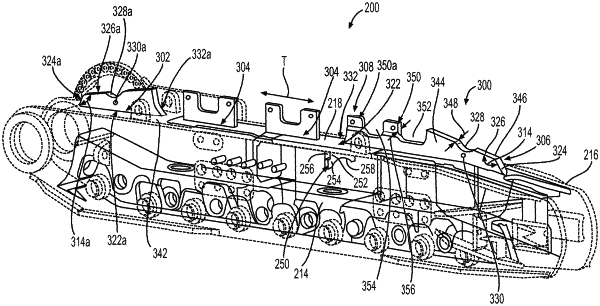

OG exemplary drawing

14. A track slider mounting plate kit comprising:
at least a first mounting plate including a first bottom mounting surface;
a first beveled surface extending from the first bottom mounting surface; and
a second beveled surface that extends from the first beveled surface;
wherein the first beveled surface forms a first oblique angle with the second beveled surface ranging from 120.0 degrees to 150.0 degrees.
