US 12,187,348 B2
System for preventing rust on vehicle drain holes
John-Paul Kalilec, Wayne, PA (US)
Filed by John-Paul Kalilec, Wayne, PA (US)
Filed on Nov. 30, 2022, as Appl. No. 18/060,061.
Prior Publication US 2024/0174299 A1, May 30, 2024
Int. Cl. B62D 25/24 (2006.01); B60R 13/07 (2006.01)
CPC B62D 25/24 (2013.01) [B60R 13/07 (2013.01)] 16 Claims

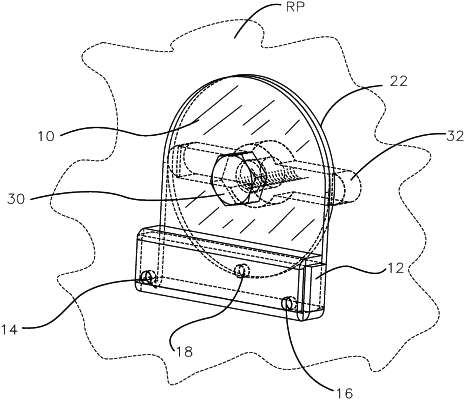

OG exemplary drawing

1. A system for preventing rust on and corrosion of vehicle drain holes, said system comprising:
a sealing gasket configured to cover a vehicle drain hole, said gasket having a bottom opening; and
an exterior guard member comprising an upper shield component with a drain opening and a lower water and debris collection chamber having at least one chamber drain hole, the guard member being configured to cover the sealing gasket; wherein moisture and debris from the vehicle drain hole is configured to flow through the bottom opening of the gasket, through the drain opening, into the collection chamber, and out through the at least one chamber drain hole.
