US 12,187,329 B2
Regenerative energy absorption device, coupling or joint arrangement having an energy absorption device of this kind, and damping arrangement having an energy absorption device of this kind
Thomas Prill, Hannover (DE)
Assigned to VOITH PATENT GMBH, Hannover (DE)
Appl. No. 17/595,666
Filed by VOITH PATENT GMBH, Heidenheim (DE)
PCT Filed May 14, 2020, PCT No. PCT/EP2020/063452
§ 371(c)(1), (2) Date Nov. 22, 2021,
PCT Pub. No. WO2020/239458, PCT Pub. Date Dec. 3, 2020.
Claims priority of application No. 10 2019 113 907.4 (DE), filed on May 24, 2019.
Prior Publication US 2022/0219741 A1, Jul. 14, 2022
Int. Cl. B61G 9/06 (2006.01); B61G 9/20 (2006.01); B61G 9/24 (2006.01)
CPC B61G 9/06 (2013.01) [B61G 9/20 (2013.01); B61G 9/24 (2013.01)] 16 Claims

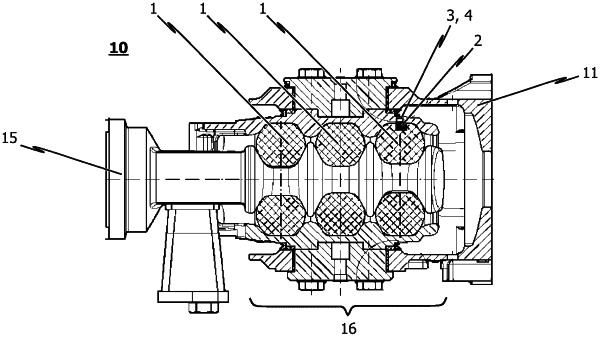

OG exemplary drawing

1. A regenerative energy absorption device for damping forces which occur during operation of a track-guided vehicle, wherein the energy absorption device comprises:
at least one spring device with an elastomer body which at least partially deforms elastically when forces are introduced into the energy absorption device, wherein the elastomer body is at least partially formed from an electrically conductive material, wherein an electrical resistance of the electrically conductive material varies under tensile and/or compressive load, and wherein the energy absorption device includes a resistance sensor device for detecting an electrical conductivity or an electrical resistance of the electrically conductive material.
