US 12,187,212 B2
System method for determining collision of walker
Byung Hyuk Park, Anyang-si (KR)
Assigned to HYUNDAI MOBIS CO., LTD., Seoul (KR)
Filed by HYUNDAI MOBIS CO., LTD., Seoul (KR)
Filed on Oct. 13, 2021, as Appl. No. 17/500,862.
Claims priority of application No. 10-2020-0150273 (KR), filed on Nov. 11, 2020; and application No. 10-2020-0150274 (KR), filed on Nov. 11, 2020.
Prior Publication US 2022/0144199 A1, May 12, 2022
Int. Cl. B60R 21/0136 (2006.01); B60R 21/01 (2006.01); B60R 21/0132 (2006.01); B60R 21/36 (2011.01); B60R 21/38 (2011.01); G06V 20/56 (2022.01); G06V 40/10 (2022.01); H04N 5/33 (2023.01)
CPC B60R 21/0136 (2013.01) [B60R 21/01332 (2014.12); B60R 21/36 (2013.01); B60R 21/38 (2013.01); G06V 20/56 (2022.01); G06V 40/10 (2022.01); H04N 5/33 (2013.01); B60R 2021/01013 (2013.01)] 15 Claims

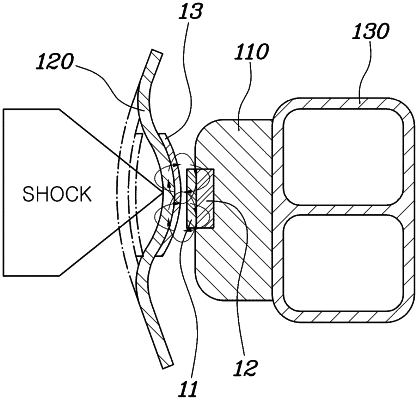

OG exemplary drawing

1. A pedestrian collision determination system comprising:
a collision detection sensor system including:
a conductive pattern disposed on a front surface of a shock absorber of a vehicle bumper, the conductive pattern being configured to form an electromagnetic field by an application of alternating current power, and
a conductive material disposed at a position facing the conductive pattern on an inner surface of a bumper skin of the vehicle bumper; and
a control unit comprising at least one circuit configured to determine an occurrence or non-occurrence of a pedestrian collision based on a change of a current flowing in the conductive pattern, wherein the at least one circuit of the control unit is configured to calculate a mass and a stiffness of a colliding object based on the magnitude of the peak value of the current flowing in the conductive pattern and the vibration frequency of the peak value and, based on the determination result, determine whether the colliding object is a pedestrian by comparing the calculated stiffness with a set range indicative of a pedestrian stiffness comprising a maximum stiffness value and a minimum stiffness value and the calculated mass with a pre-defined value.
