US 12,186,786 B2
Method for treating waste electronic substrate
Shu Muraoka, Kagawa-gun (JP); Hiroshi Hayashi, Tokyo (JP); Shota Nakayama, Iwaki (JP); and Yusuke Kimura, Kagawa-gun (JP)
Assigned to MITSUBISHI MATERIALS CORPORATION, Tokyo (JP)
Appl. No. 17/422,765
Filed by MITSUBISHI MATERIALS CORPORATION, Tokyo (JP)
PCT Filed Feb. 21, 2020, PCT No. PCT/JP2020/006981
§ 371(c)(1), (2) Date Jul. 14, 2021,
PCT Pub. No. WO2020/175350, PCT Pub. Date Sep. 3, 2020.
Claims priority of application No. 2019-035626 (JP), filed on Feb. 28, 2019.
Prior Publication US 2022/0062962 A1, Mar. 3, 2022
Int. Cl. B09B 3/25 (2022.01); B02C 18/00 (2006.01); B02C 23/08 (2006.01); B07C 5/06 (2006.01); B07C 5/342 (2006.01); B07C 5/344 (2006.01); B09B 3/40 (2022.01); B09B 101/17 (2022.01); H05K 3/22 (2006.01)
CPC B09B 3/25 (2022.01) [B02C 18/0084 (2013.01); B02C 23/08 (2013.01); B07C 5/06 (2013.01); B07C 5/342 (2013.01); B07C 5/344 (2013.01); B09B 3/40 (2022.01); H05K 3/22 (2013.01); B09B 2101/17 (2022.01); H05K 2203/178 (2013.01)] 4 Claims

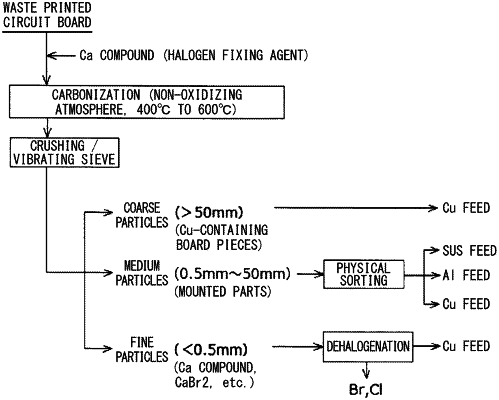

OG exemplary drawing

1. A method for treating waste printed circuit board, the method comprising:
carbonizing waste printed circuit board together with a calcium compound at 400° C. to 600° C. in a non-oxidizing atmosphere to fix a halogen contained in the board as calcium halide and to melt a solder of the board to allow mounted parts to be easily separated from the board;
performing crushing after the carbonizing; and
sieving crushed materials into fine particles of less than 0.5 mm containing the calcium compounds, medium particles containing the mounted parts, and coarse particles containing board pieces such that the crushed materials are sorted into the calcium compounds, the mounted parts, and the board pieces;
wherein
the crushed materials are sieved into the fine particles of less than 0.5 mm containing the calcium compounds, medium particles of 0.5 mm or more and 50 mm or less containing the mounted parts, and coarse particles of more than 50 mm containing the board pieces.
