US 12,186,696 B2
Modular filter element
Detlef Hega, Bad Gandersheim (DE); Ian Chisem, Warrington Cheshire (GB); and Purv Purohit, Berlin (DE)
Assigned to MADISON FILTER 981 LIMITED, Stoke-on-Trent (GB)
Appl. No. 17/254,141
Filed by MADISON FILTER 981 LIMITED, Stoke-on-Trent (GB)
PCT Filed Jun. 18, 2019, PCT No. PCT/GB2019/051706
§ 371(c)(1), (2) Date Dec. 18, 2020,
PCT Pub. No. WO2019/243807, PCT Pub. Date Dec. 26, 2019.
Claims priority of application No. 1810051 (GB), filed on Jun. 19, 2018.
Prior Publication US 2021/0245085 A1, Aug. 12, 2021
Int. Cl. B01D 46/24 (2006.01); B01D 46/00 (2022.01)
CPC B01D 46/2407 (2013.01) [B01D 46/0001 (2013.01); B01D 46/0013 (2013.01); B01D 2265/029 (2013.01); B01D 2265/04 (2013.01); B01D 2265/06 (2013.01)] 20 Claims

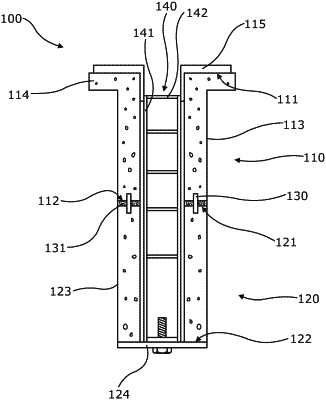

OG exemplary drawing

1. A modular ceramic filter element comprising a first ceramic elongate hollow body, a second ceramic elongate hollow body and a connection member, in the form of a ring, wherein the connection member is metallic and is arranged to extend axially into a lower wall of the first ceramic elongate hollow body and into an upper wall of the second ceramic elongate hollow body to provide a gas-tight seal between the first ceramic elongate hollow body and the second ceramic elongate hollow body.
