US 12,186,025 B2
Surgical instrument mounted display system
Mario Mata, Royersford, PA (US); Glen Pierson, Glenmoore, PA (US); George Mikhail, Downingtown, PA (US); and Scott Larsen, Spring City, PA (US)
Assigned to DePuy Synthes Products, Inc., Raynham, MA (US)
Filed by DePuy Synthes Products, Inc., Raynham, MA (US)
Filed on Aug. 19, 2021, as Appl. No. 17/406,527.
Application 17/406,527 is a continuation of application No. 15/710,938, filed on Sep. 21, 2017, granted, now 11,166,766.
Prior Publication US 2021/0378762 A1, Dec. 9, 2021
Int. Cl. A61B 34/20 (2016.01); A61B 5/06 (2006.01); A61B 6/00 (2024.01); A61B 6/12 (2006.01); A61B 6/46 (2024.01); A61B 17/17 (2006.01); A61B 34/00 (2016.01); A61B 34/35 (2016.01); A61B 90/00 (2016.01); G01B 7/00 (2006.01)
CPC A61B 34/20 (2016.02) [A61B 5/061 (2013.01); A61B 6/12 (2013.01); A61B 6/4441 (2013.01); A61B 6/461 (2013.01); A61B 6/487 (2013.01); A61B 34/35 (2016.02); A61B 90/36 (2016.02); A61B 90/37 (2016.02); A61B 17/1703 (2013.01); A61B 17/1725 (2013.01); A61B 2034/2046 (2016.02); A61B 2034/2048 (2016.02); A61B 34/25 (2016.02); A61B 2090/372 (2016.02); A61B 2090/376 (2016.02); G01B 7/003 (2013.01)] 20 Claims

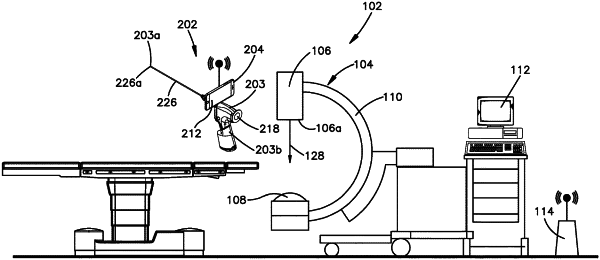

OG exemplary drawing

1. A surgical instrument assembly comprising:
a processor;
a surgical instrument configured to operate on an anatomical structure, the surgical instrument including a cutting tip configured to remove anatomical material from a target location of the anatomical structure;
a display coupled to the processor and attached to the surgical instrument, the display configured to display fluoroscopic data of the anatomical structure, the fluoroscopic data generated by an imaging device;
an orientation sensor configured to generate real-time orientation information based on an orientation of the surgical instrument;
a memory in communication with the processor, the memory having stored therein instructions that, upon execution by the processor, cause:
the surgical instrument assembly to receive the fluoroscopic data in real-time from the imaging device;
the display to display a position of the cutting tip relative to the target location on the fluoroscopic data of the anatomical structure;
generating a real-time visual indicator based on the real-time orientation information with respect to a direction of X-ray travel from an X-ray transmitter of the imaging device to an X-ray receiver of the imaging device, wherein the real-time visual indicator is generated as a predetermined visual indication as a result of the surgical instrument being aligned with the direction of X-ray travel; and
the display to display the real-time visual indicator, wherein the display displays the predetermined visual indication when the surgical instrument is aligned with the direction of X-ray travel from the X-ray transmitter to the X-ray receiver.
