US 12,185,936 B2
Fixed suture construct for soft tissue reconstruction
Austin Taylor Jones, Mesa, AZ (US); Christopher M. Palese, Warsaw, IN (US); Kevin N. Baird, Scottsdale, AZ (US); Hoang Nguyen, Litchfield Park, AZ (US); Carissa Henriksen, Scottsdale, AZ (US); and Lindsay Mitchell, West Chester, PA (US)
Assigned to Biomet Manufacturing, LLC, Warsaw, IN (US)
Filed by Biomet Manufacturing, LLC, Warsaw, IN (US)
Filed on Jun. 14, 2023, as Appl. No. 18/209,849.
Application 18/209,849 is a continuation of application No. 17/131,122, filed on Dec. 22, 2020, granted, now 11,712,234.
Claims priority of provisional application 62/954,043, filed on Dec. 27, 2019.
Prior Publication US 2023/0320718 A1, Oct. 12, 2023
This patent is subject to a terminal disclaimer.
Int. Cl. A61B 17/04 (2006.01)
CPC A61B 17/0401 (2013.01) [A61B 2017/0412 (2013.01); A61B 2017/0459 (2013.01); A61B 2017/0464 (2013.01)] 20 Claims

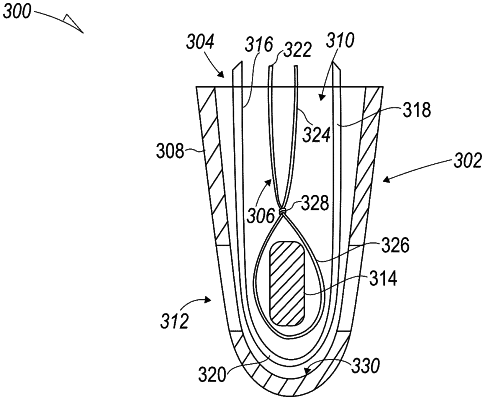

OG exemplary drawing

1. A method of securing tissue to bone, the method comprising:
locating a suture anchor construct in a bone, the suture anchor construct comprising a first suture, a second suture, and an anchor body that includes a post, the first suture including a first tail, a second tail, and a first intermediate portion, the first intermediate portion extending around the post inside the anchor body in an unfixed manner with the first tail and the second tail extending back through the anchor body and out of the bone, the first intermediate portion slidable relative to the post such that the respective lengths of the first tail and the second tail are adjustable away from a trailing end of the anchor body outside the bone, the second suture including a third tail, a fourth tail, and a second intermediate portion, the second intermediate portion fixedly secured to the post such that the respective lengths of the third tail and the fourth tail extend away from the trailing end of the anchor body in a fixed manner, wherein the respective lengths of the first tail and the second tail are adjustable away from the trailing end of the anchor body while the second intermediate portion of the second suture is fixedly secured to the post; and
passing at least one of the first tail, the second tail, the third tail and the fourth tail through a soft tissue following said locating.
