US 12,185,858 B2
Reconfigurable pillow enclosure
Matthew Maxfield, North Salt Lake, UT (US); Cory Tholl, Kaysville, UT (US); Tyler Westbroek, Clearfield, UT (US); Shawn Parry, Salt Lake City, UT (US); and Luke Metzger, Layton, UT (US)
Assigned to Argon Technologies, Inc., Kaysville, UT (US)
Filed by Argon Technologies, Inc., Kaysville, UT (US)
Filed on Aug. 21, 2023, as Appl. No. 18/236,293.
Application 18/236,293 is a continuation of application No. 16/953,650, filed on Nov. 20, 2020, granted, now 11,730,291, issued on Aug. 22, 2023.
Claims priority of provisional application 62/939,371, filed on Nov. 22, 2019.
Prior Publication US 2023/0389731 A1, Dec. 7, 2023
Int. Cl. A47G 9/10 (2006.01); A47G 9/02 (2006.01)
CPC A47G 9/10 (2013.01) [A47G 9/1045 (2013.01); A47G 9/0253 (2013.01)] 6 Claims

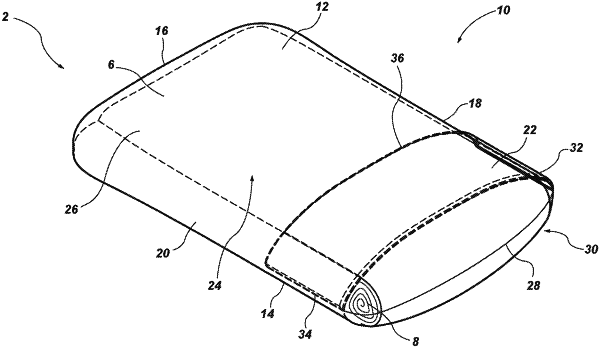

OG exemplary drawing

1. A pillow enclosure system comprising:
a first portion and a second portion attached along an interior lateral edge, the first portion comprising:
a first top panel and a first base panel secured together along a first longitudinal edge and a second opposing longitudinal edge, the first portion defining a first chamber;
a first envelope secured along a top side of the interior lateral edge and secured along at least a portion of the first longitudinal edge and second opposing longitudinal edge; the second portion comprising:
a second top panel and a second base panel secured together along the first longitudinal edge and the second opposing longitudinal edge;
a second envelope secured along a base side of the interior lateral edge and secured along at least a portion of the first longitudinal edge and second opposing longitudinal edge, the second portion positionable within the first envelope and the first portion positionable in the second envelope; and
wherein the first top panel and the second top panel are connected along the top side of the interior lateral edge and wherein the first base panel and the second base panel are connected along the base side of the interior lateral edge, connecting the first portion and second portion and forming a continuous tubular-shaped enclosure.
