| CPC A47B 57/40 (2013.01) [A47B 47/0083 (2013.01); A47B 57/34 (2013.01); A47B 57/402 (2013.01); A47B 57/50 (2013.01); A47B 87/0215 (2013.01); A47B 96/1408 (2013.01)] | 6 Claims |
|
1. A screw-less and no rivet combined type shelf, comprising:

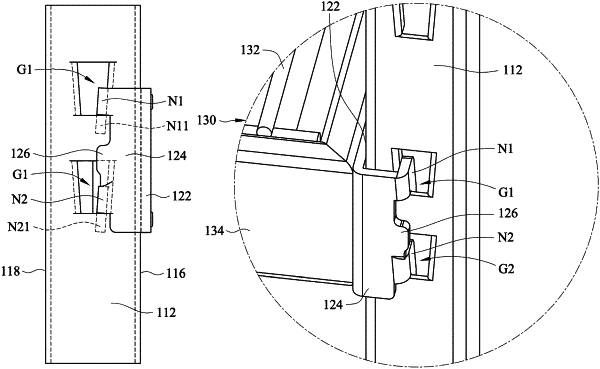

a plurality of post components, each of the plurality of post components including four plates, a plurality of trapezoidal holes and at least one bent plate, the four plates being connected together, the plurality of trapezoidal holes being disposed at one of the four plates, each of the at least one bent plate being bent into one corresponding trapezoidal hole of the plurality of trapezoidal holes;
at least one storage layer; and
a plurality of connecting components, each of the plurality of connecting components being disposed to one corresponding storage layer of the at least one storage layer, the plurality of connecting components being to assemble each of the at least one storage layer within the plurality of post components, each of the plurality of connecting components including at least one hook piece as a slope piece;
wherein, when each of the at least one hook piece is inserted into the corresponding trapezoidal hole in an upright assembly direction, each of the plurality of hook pieces is buckled in the corresponding trapezoidal hole; and
wherein each of the plurality of connecting components includes a fixing piece and a bent connecting piece, a side of the bent connecting piece is connected to the fixing piece, another side of the bent connecting piece is connected to the hook piece, and the hook piece and the fixing piece are separated by a distance.
|
